Description
- Standard Control Panel w/Digital Timers
- 3 Spray Patterns
- 100 – 400 Foot Power Cord Options
- 3-Year Fountain Warranty
- Underwater Quick Disconnect

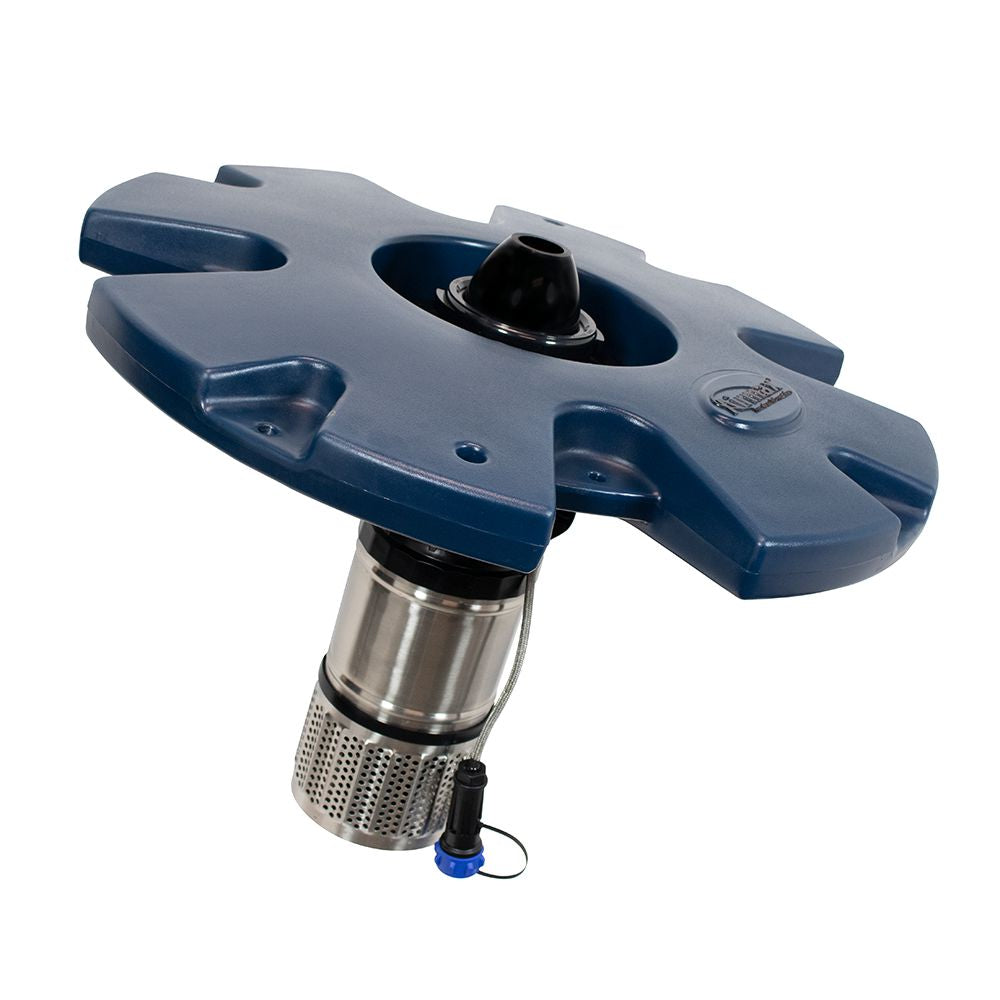

The EcoSeries Floating Fountain showcases beautiful industry leading spray patterns that outmatch other 3/4 HP and 1 HP fountains. The EcoSeries Fountain operates in as little as 24″ of depth and includes an energy-efficient 1/2 HP motor, 3 spray patterns, control panel and comes standard with a 100′ power cord. The EcoSeries Fountain is also available in 150′, 200′, 250′, 300′, 350′ or 400′.
Easy to Install – The EcoSeries Fountain was designed for easy installation. No tools are required for assembly or when changing Nozzles. The EcoSeries Fountain is equipped with a quick disconnect cord for easy removal of the motor and float.
Energy Efficient – The 1/2 HP motor is energy efficient drawing 5.8 Amps, 667 Watts on 115V power. The asynchronous motor, silicon carbide shaft bearing, and ceramic shaft are housed in a stainless steel body with a suction screen.
Spray Patterns – The EcoSeries Fountain comes standard with 3 spray patterns; Classic, Trumpet and Crown & Trumpet. Optional nozzles are available in Single Arch, Double Arch and Double Arch & Geyser.
Control Panel – The included Plug & Play Control Panel is set-up to run your fountain and the optional LED Light Set. The control panel comes with a 3-year warranty.
EcoSeries Included Spray Patterns
 Classic Pattern Pattern Dimensions: 6’H x 16’W |  Crown & Trumpet Pattern Pattern Dimensions: Trumpet: 8’H x 4’W Crown: 4’H x 32’W |
Trumpet Pattern Pattern Dimensions: 14’H x 7’W |
EcoSeries Optional Spray Patterns
Pattern Dimensions: |  Double Arch Pattern Pattern Dimensions: |
Pattern Dimensions: |
What is Included with the EcoSeries?
 The Classic Spray Pattern comes pre-installed on the EcoSeries Fountain. This beautiful full pattern provides relaxing sounds as the water breaks the surface. |  The Crown & Trumpet Spray Pattern combines the beauty of the arch and trumpet pattern creating a majestic display. |  The Trumpet Spray Pattern provides a bountiful, tall burst of water, giving you the tranquil sound of water. |  Standard 100′ power cord, underwater quick disconnect and stainless steel strain relief. Also available in 150′, 200′, 250′, 300′, 350′ and 400′ lengths. |  115 Volt Plug & Play Control Panel includes two outlets to power both the fountain and optional light kits. Programmable 24-hour digital timers allows you to independently program fountain and light run times. |
Optional Features and Accessories
RGBW Color-Changing LED Light Sets
Now you can set the mood by changing the color including: white, blue, green, red and more. The Airmax RGBW Color-Changing LED Light Set is run by a wireless remote with a range of up to 200 feet. The Wireless remote allows you to change colors, dim/brighten the lights, control flash speed and run up to 9 preset programs. Requires: 2 AAA Batteries (Included).
The adjustable above-waterline design and completely sealed light housing ensure a maintenance-free operation. Lights easily clip onto the EcoSeries float making for a fast installation with no tools required. All light sets come standard with 100′ power cord and strain relief: 150′, 200′, 250′, 300′, 350′ and 400′ power cord lengths are available. All light sets also include an underwater disconnect and stainless-steel braiding between light fixtures and power leads to protect the power cord. Available in 2, 4, and 8 Light Sets. 3-year warranty.
Power Cord Options
All Airmax floating fountains come with a standard power cord; however, if you have nuisance pond wildlife like beavers, muskrats or nutria that are notorious for chewing, you may want to explore our cord protection options. Replacement cords can be expensive and time-consuming so investing in cord protection is a great insurance policy for your fountain. Airmax power cords can be wrapped with our durable PolyFlex protective sheathing. If you are looking for something more substantial, we highly recommend the stainless-steel option for the ultimate power cord protection.
 Standard Power Cord |  Polyflex Cord Protection |
Stainless-Steel Cord Protection |
Support Information
Ecoseries Pond Fountain Product Manual
Control Panel Instruction Manual
Spray Pattern Nozzle Instruction Manual
Technical Specs
| Recommended Pond Size | Aerates Ponds up to 1/4 Acre |
| Motor Size | 1/2 HP |
| Wattage | 667 Watts |
| Running Amps | 5.8 Amps |
| Voltage | 115 Volts |
| Minimum Operating Depth | 24 Inches |
| Maximum Spray Height | 14 Feet |
| Included Patterns | Classic, Crown & Trumpet, Trumpet |
| Optional Spray Patterns | Single Arch, Double Arch, Double Arch & Geyser |
| 115V Control Panel Includes | Dual Digital Timers up to 8 Run Cycles |
| Available Power Cord Lengths | 100′, 150′, 200′, 250′, 300′, 350′, 400′ |
| Available Protective Cord Sleeves | Standard, PolyFlex, Stainless Steel |
| Warranty | 3-Year |
| Daily Operating Cost (8 hrs/day)* | $0.53 |
Easy Installation
The Airmax EcoSeries 1/2 HP Fountain was designed to be easy to assemble. No tools are required for assembly or when changing nozzles. The EcoSeries Fountain is equipped with an underwater quick disconnect cord for easy removal of the motor and float.
Included Control Panel
Each fountain includes the ETL listed Airmax 115V Plug & Play Control Panel. This control panel includes two 115 volt outlets ready to power one fountain and one optional light set. No hard wiring is required. Simply plug in the 24-inch power cord whip into a standard 115-volt outlet. In the event of a ground fault, a fast-acting circuit breaker will shut off the electrical power. The control panel features dual digital timers allowing your to independently program fountain and light run times up to 8 cycles.
Airmax EcoSeries vs AquaMaster Masters Decorative
Watch as the Airmax EcoSeries goes head to head with the AquaMaster Masters Decorative Series and discover why the EcoSeries is the clear choice.
