Airmax PS20 | Water Aeration | Pond Aerator | Up to 2 Acres and 50′ Deep

Restore your pond’s health and clarity with professional-grade aeration.

The Airmax PondSeries® PS20 is a high-performance aeration system engineered to circulate water, eliminate thermoclines, and accelerate the natural breakdown of nutrients. Capable of aerating ponds up to 2 acres and 50′ deep, this system delivers visible results in as little as 90 days, promoting cleaner, clearer water and reduced muck accumulation.

Key Features

• Maximum Coverage: Effectively aerates ponds up to 2 acres and 50′ deep using 2 ProAir® 4 Weighted Diffusers.
• Whisper-Quiet Operation: Features an ETL-listed composite cabinet with a faux-rock finish that blends into your landscape while operating at near-silent levels.
• Smart Technology: Equipped with a 1/2 HP SilentAir™ Rocking Piston Compressor featuring SmartStart™ Technology (IST), which protects the motor during power interruptions.
• Flexible Installation: Can be installed at the water’s edge or up to 1/4 mile away. Available in 115V or 230V configurations to suit your power supply.
• Built to Last: High-density air intake filters, an elevated base to protect against flooding, and a cooling ventilation fan ensure long-term reliability.

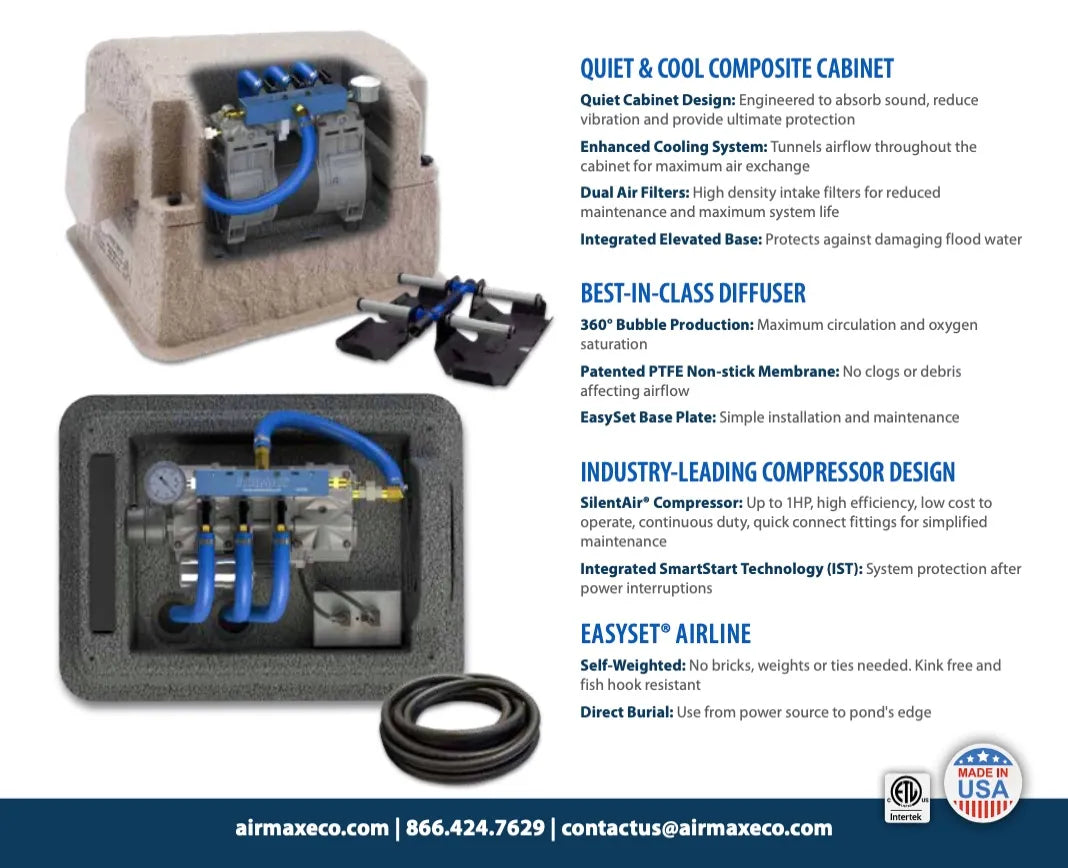

Component Breakdown

• Composite Cabinet: Weather-resistant with a 10-year warranty (23″L x 17″W x 15″H).
• SilentAir™ Compressor: Highly efficient, pushing up to 4.7 CFMs for as little as $33/month (3-year warranty).

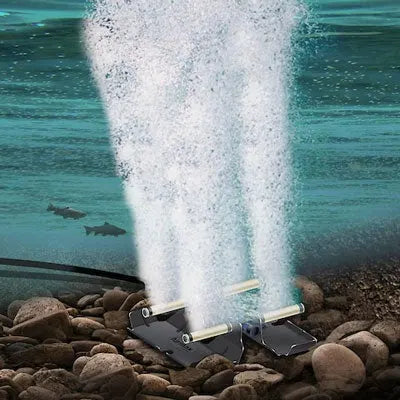

• ProAir® 4 Weighted Diffusers: Innovative membrane sticks release tiny, oxygen-rich bubbles. Includes an integrated check valve and a 5-year warranty.
• Airflow Manifold: Features 2-port nickel-plated ball valves for easy management of individual diffuser airflow.

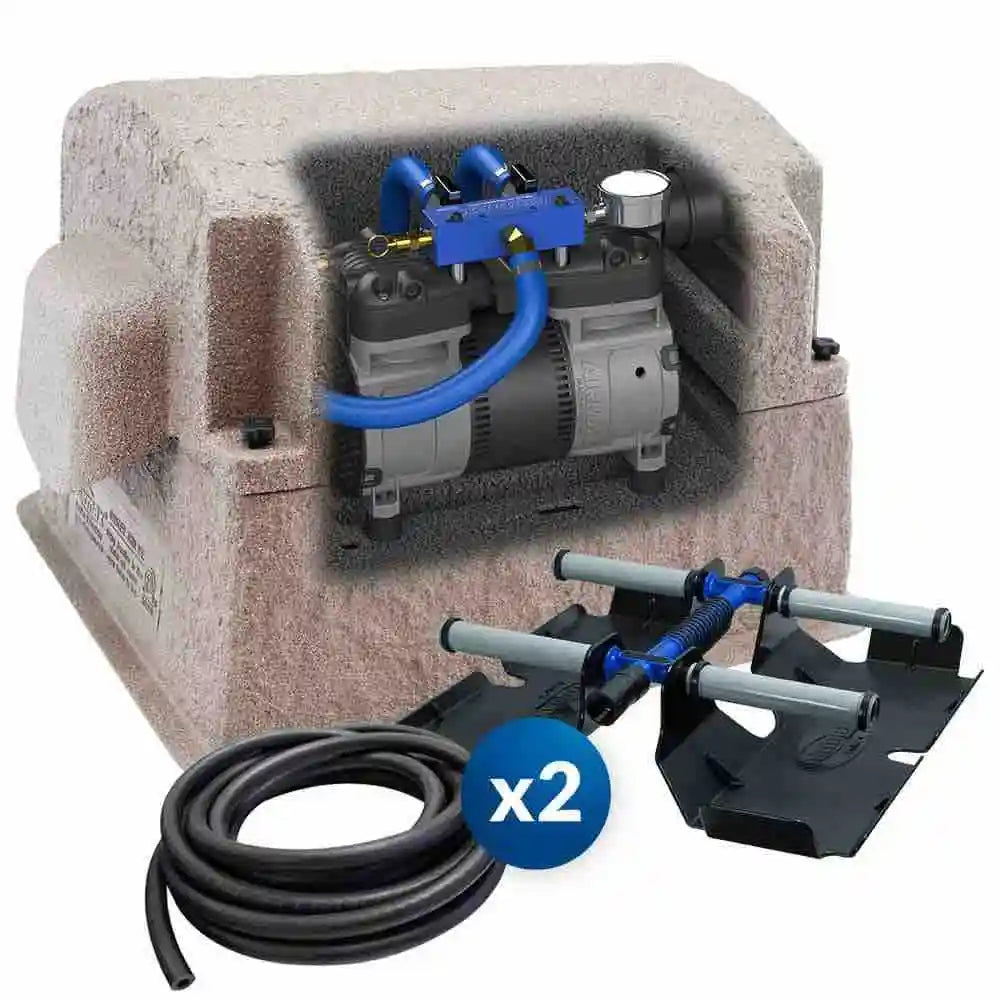

What’s Included in the Box

To ensure a smooth setup, the Airmax PondSeries® PS20 system arrives complete with all the essential components you need to begin aeration:

• SilentAir™ 1/2 HP Rocking Piston Compressor: Featuring SmartStart™ Technology for reliable performance.
• Airmax Composite Cabinet: A weather-resistant, faux-rock enclosure to protect your compressor, pre-wired with an electrical box.
• 2 ProAir® 4 Weighted Diffusers: Designed to release tiny oxygen bubbles and stay upright on the pond bottom.
• Airflow Manifold Assembly: A 2-port manifold with nickel-plated ball valves for easy individual diffuser control.
• Cabinet & Compressor Cords: Includes a 6′ cabinet power cord and a 2’6″ compressor cord.
• Integrated Cooling System: Built-in ventilation fan with a rain shroud to prevent moisture and heat damage.
• Mounting Hardware: Elevated base for the cabinet to protect against flood water and debris.
