Airmax PS10 | Water Aeration | Pond Aerator | Up to 1 Acre

Aerates Ponds up to 1 Acre and up to 21′ Deep.
Aeration systems utilize a shore-mounted air pump that delivers air to specialized diffuser plates on the pond bottom. This results in a column of rising bubbles that circulates water throughout the pond, eliminating a change in temperature or thermocline. With increased oxygen and added natural bacteria, any excess nutrients in the pond or lake are metabolized, resulting in cleaner, clearer water and less muck. Results you can see in just 90 days!

The perfect aeration solution for smaller ponds.

The Airmax PondSeries® PS10 is designed to provide efficient, whisper-quiet aeration for smaller bodies of water. By delivering oxygen directly to the bottom, this system circulates water, prevents thermoclines, and promotes a healthier aquatic environment with minimal maintenance.

Key Features

• Versatile Installation: Can be installed at the water’s edge or up to 1/4 mile away. No shoreline power is required, and you can choose between 115V or 230V configurations.
• Whisper-Quiet Design: ETL-listed composite cabinet with a faux-rock finish blends into your landscape while operating silently.
• SmartStart™ Technology (IST): The 1/4 HP SilentAir™ compressor is protected during pressurized restarts following any power interruption.
• Energy Efficient: Pushes up to 2.3 CFMs of oxygen for as little as $0.44 per day.
• Low-Maintenance Diffusers: The ProAir® 4 Weighted Diffuser uses a high-efficiency membrane stick, eliminating the need for frequent acid-washing or replacement.

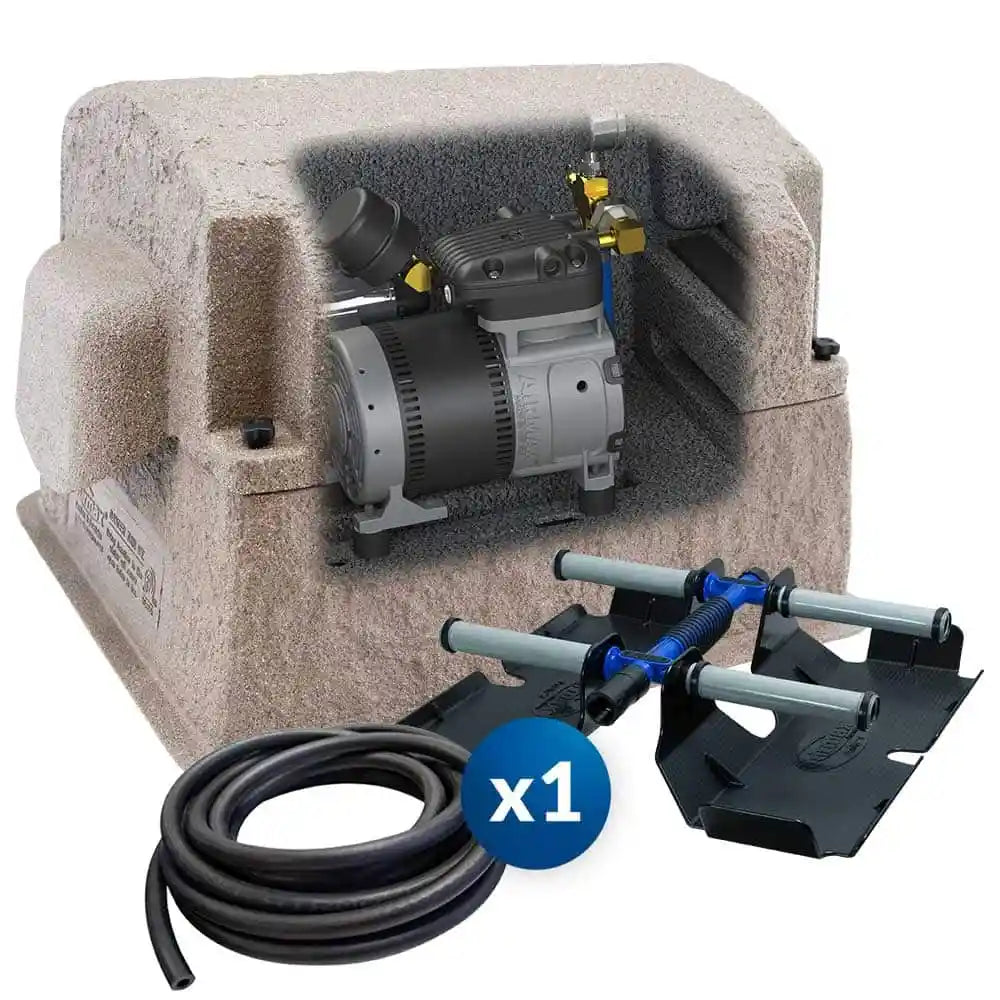

System Components

• Composite Cabinet: Weather-resistant and durable with an elevated base, ventilation fan, and rain shroud (10-year warranty). Dimensions: 23″L x 17″W x 15″H.
• SilentAir™ Compressor: Highly efficient 1/4 HP rocking piston motor with vibration-reducing rubber mounts (3-year warranty).
• Airflow Manifold: Single-port manifold with nickel-plated valves; supports 3/8″ or 5/8″ airline.

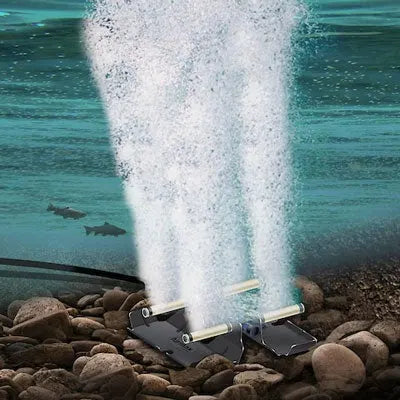

• ProAir® 4 Weighted Diffuser: Features an integrated check valve and an innovative sled design to keep the diffuser upright and submerged (5-year warranty).

Product Manual
